Activated carbon filter serie V silver -Ceccato

Activated carbon line filter V series silver color

Activated carbon filter model V20 for removal of oil vapors and hydrocarbon odors with a maximum residual oil content of 0.003 mg/m3 (0.003 ppm)

Life cycle of 1000 hours

Line filters G – C – S – D – P – V, remove contaminants that may affect the smooth operation of the production cycle

Equipped with a double stainless steel filter element, Ceccato line filters guarantee a substantial cost savings: in fact, the quality of the material allows for more effective filtering and reduces possible Pressure drops. In addition, their protective function helps to extend the life cycle of the product, decreasing the costs associated with maintenance

TECHNICAL DATA FILTER MODEL V20:

• Total mass efficiency: 99 %
• Air flow rate: 1986 L/min
• Gas”: G 1/2

CARTRIDGE TECHNICAL DATA

*

*Reference conditions:
Pressure: 7 bar
Room temperature: 20°C
Air temperature
input tablet: 20 C°

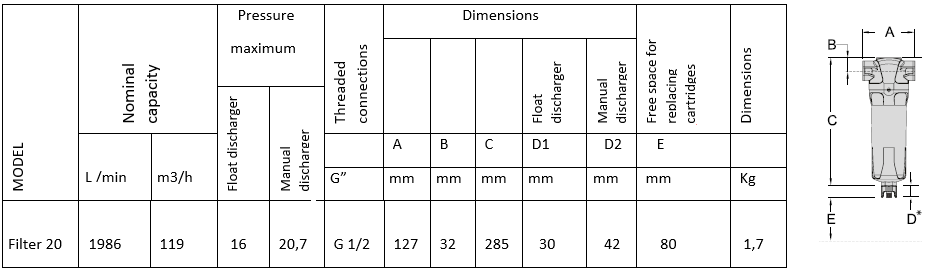

TECHNICAL DATA SHEET
